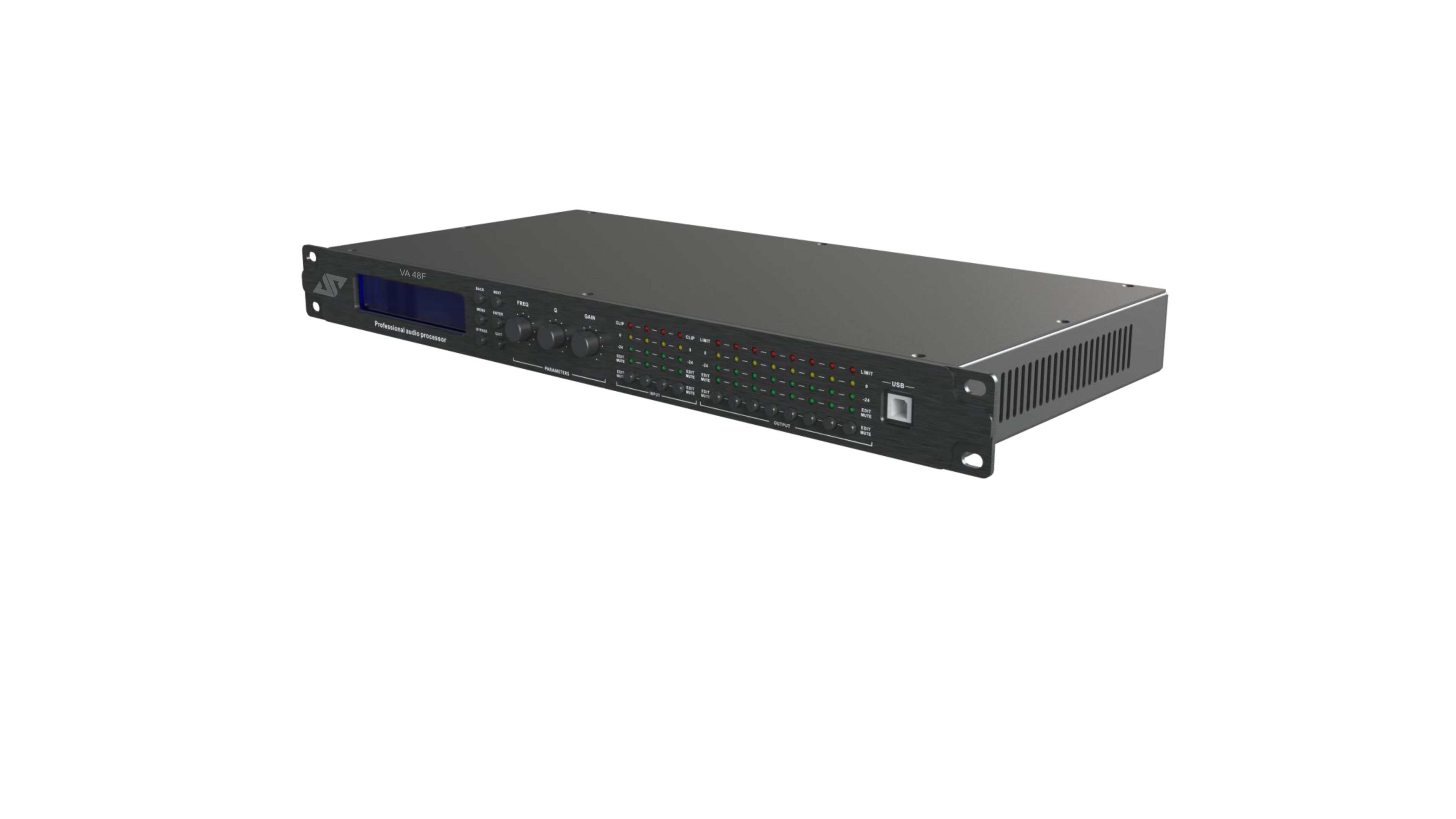

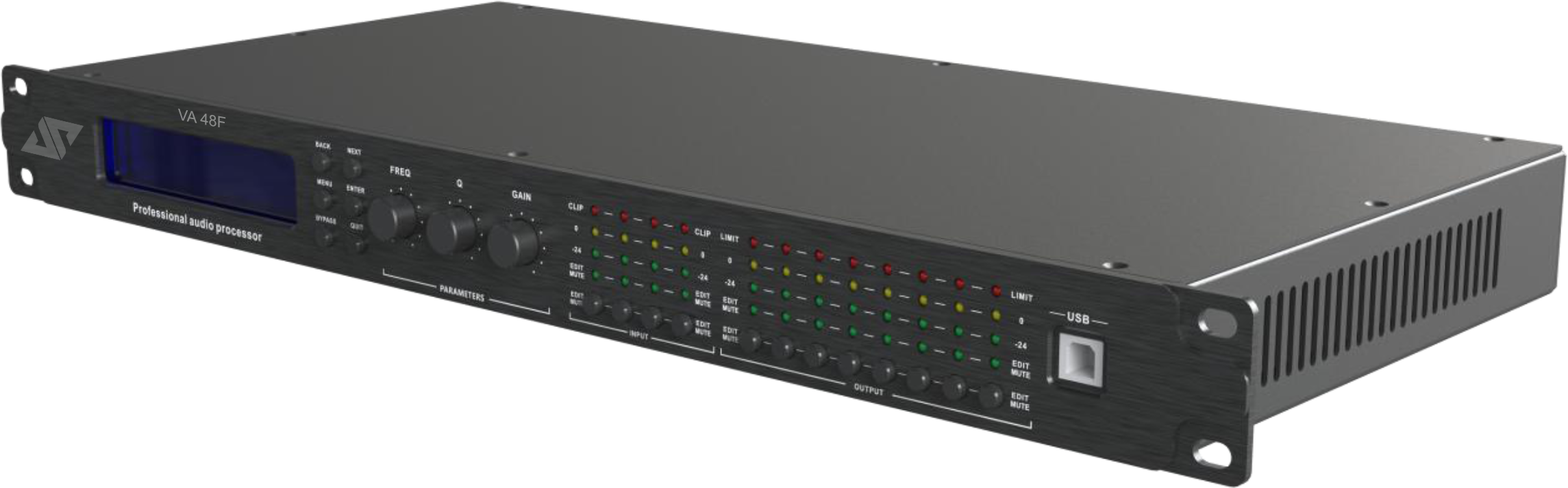

Value Acoustics VA-48F
Features :
High performance DSP process, 96k 24bit
Input with 15 bands PEQ, output with 10 bands PEQ.
Support HPF and LPF with Butterworth\Bessel\Linkwitz-Riley.
Support LSLV and HSLV,ALL-PASS filters.
Input with 3 bands Dynamic EQ.
Input with 4 x 512Taps FIR linear phase setting.
Outputwith 8X 256Taps , FIR linear phase setting.
Support presets archiving and locking, hide setting parameters.
Control connections: USB or TCP/IP. Configured with RS232 central control connection.
Nice GUI windows7/8/10/11 software
Deskripsi:
Process: SHARC
24-bit 96KHz
Input: 4 channels balanced.
Input impedance: 20KΩ
Maxinput level: 16dBu/Line
Output: 8channels balanced.Linelevel
Output impedance: 150Ω
Frequencyresponse: 20Hz-20kHz(+-0.5dB)/Line
THD+N:-90dB(@0dBu,1kHz,A-wt)/Line
Groundnoise: 20Hz-20kHz,A-wt,-93dBu
SNR: 108dB(@16dBu,1kHz,A-wt)/Line
USB: TypeA-B, freedriver
RS232: Serialportcommunication
TCP/IPinterface: RJ-45
Indicator light: Clip, level,edit,mute
Supply: AC100V～240V50/60Hz
Products Dimensions 483mmx215mmx44.5mm
Packaged Dimensions 537mmx343mmx77mm
Net Weight 3.6kg
Packaged Weight 4.0kg
Operatingtemperature:-20℃～80
