Loudspeaker 3way Value Acoustics L1

Dual 10-inch 3-Way LineArray Loudspeaker

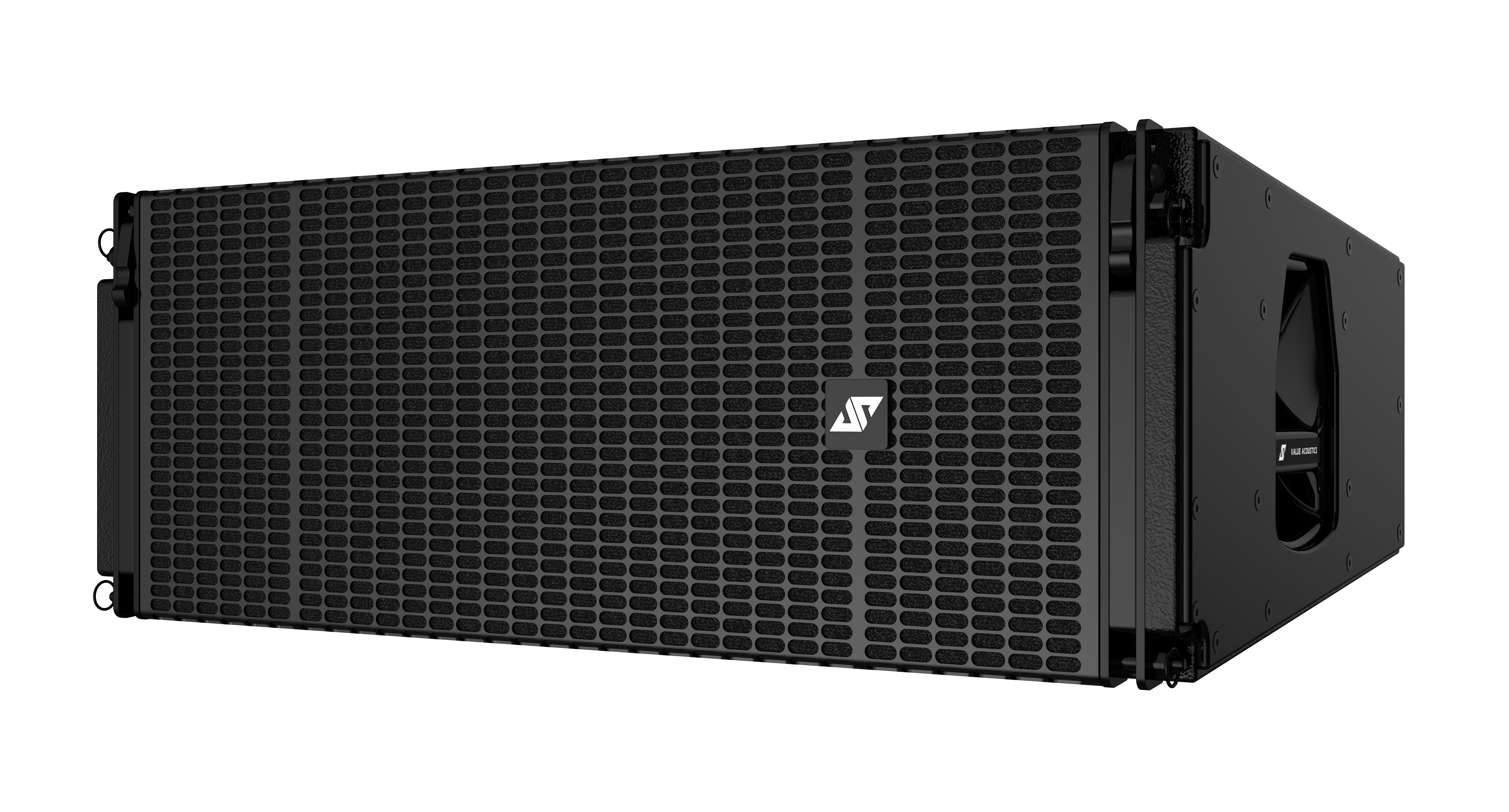

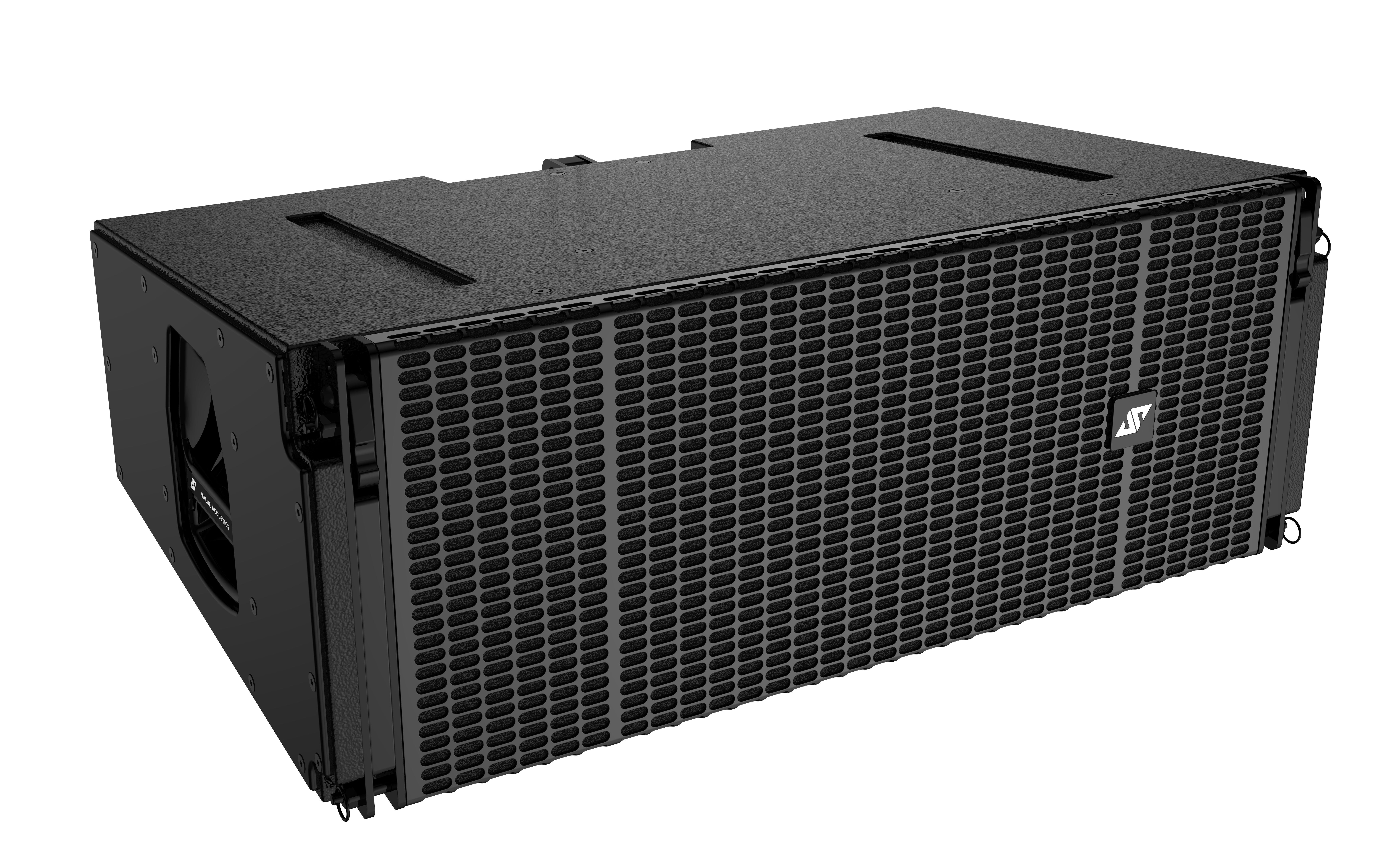

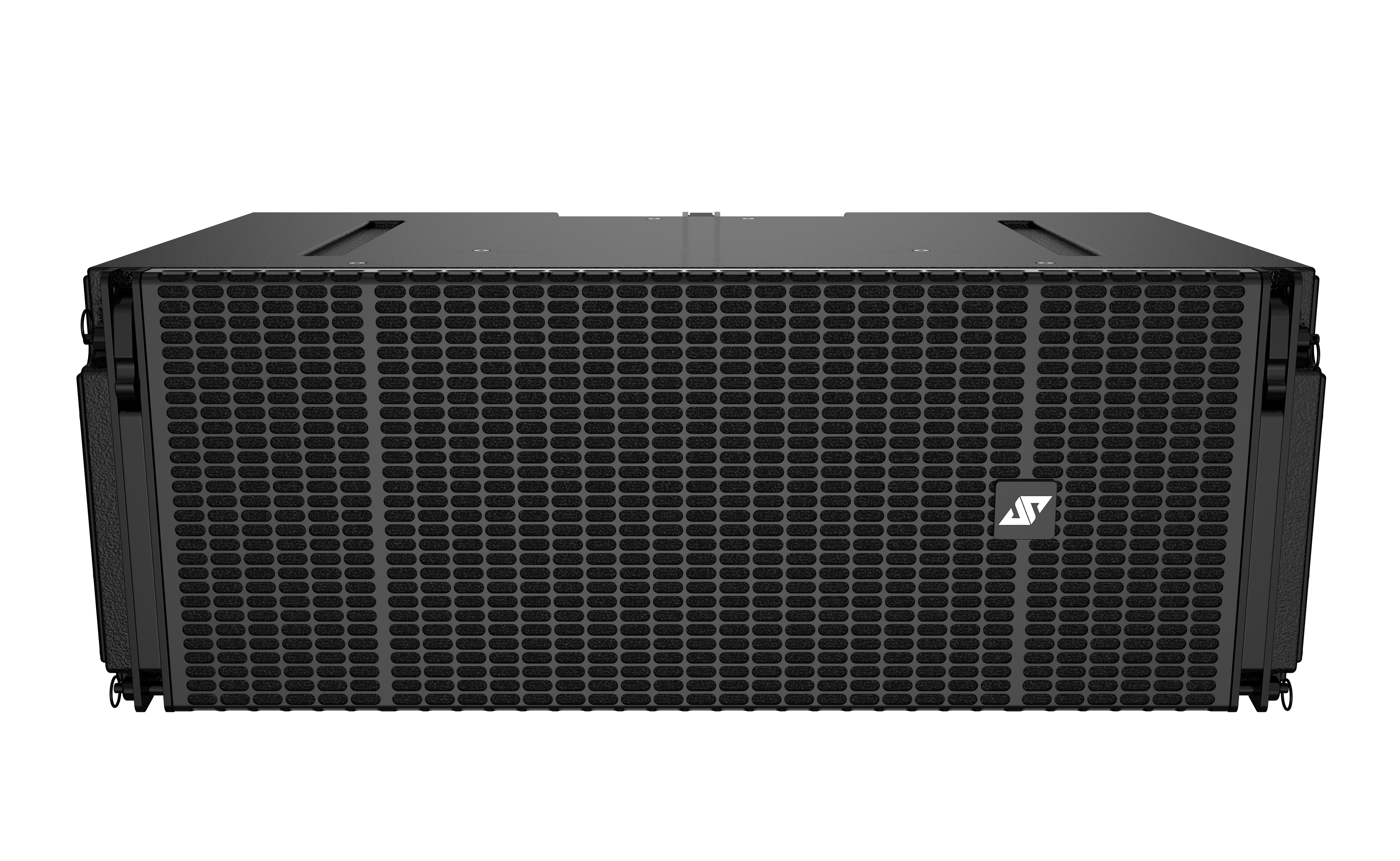

The L-1 line array speaker system is a large-scale, 3-way, dual-driver loudspeaker.

It delivers a frequency range of 60Hz–20kHz.

The system is composed of a 3-inch

(75mm voice coil, 36mm throat) neodymium compression high-frequency driver,

one 8-inch neodymium midrange driver,

and two 10-inch neodymium low-frequency drivers,

forming a sound reinforcement system with an exceptionally high dynamic range.

The low-frequency section uses two 300W 10-inch paper-cone woofers, arranged in a

left-right symmetrical configuration in series. The mid-high section features an

integrated coaxial neodymium driver module. The midrange driver is equipped with a

phase plug and a constant-directivity horn, effectively improving coverage control and

enhancing overall sensitivity. The high-frequency section adopts a 75mm neodymium

titanium diaphragm compression driver, coupled with a planar wave converter and a

90° exponential constant-directivity horn, generating a uniform wavefront. With a

sensitivity as high as 100dB, the L-1 can deliver peak sound pressure levels up to

135dB.

The L-1 enclosure is trapezoidal in shape, with nylon foot pads at the bottom to

enhance aesthetics and protect the cabinet. The symmetrical low-frequency design

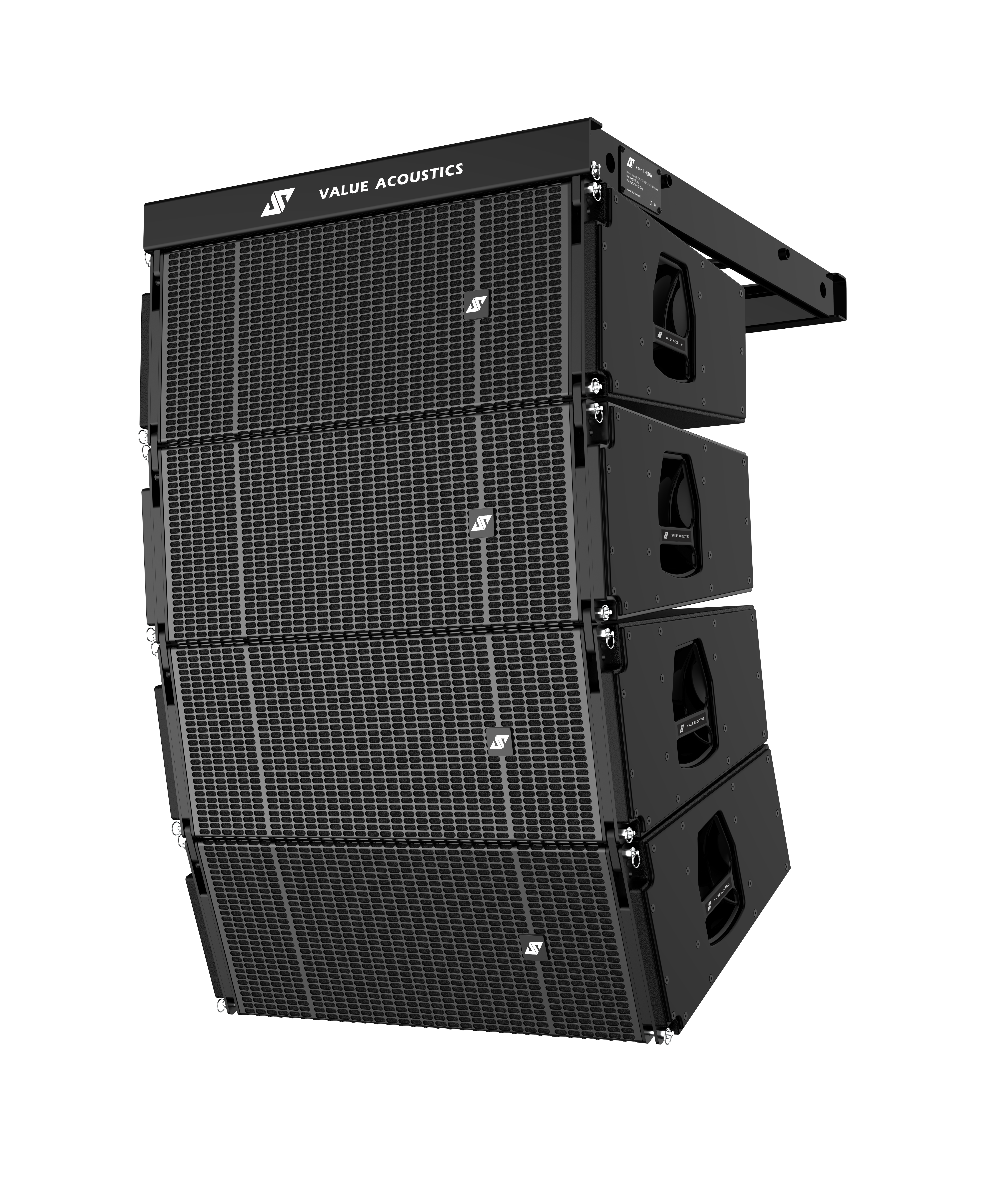

allows for efficient pre-set angle installation. Each cabinet offers adjustable angles

from 0° to 10°, in 1° increments. The rigging hardware is made of

precision-engineered, high-strength steel, ensuring quick connection, efficient setup,

and safe suspension. When multiple cabinets are flown, the rigging system complies

with the 6:1 national safety factor standard. The cabinet is constructed from 18mm

and 15mm high-density multilayer birch plywood, finished with a durable, anti-scratch,

waterproof black polyurea coating. Ergonomic handles are positioned on both sides

for safe transport, with two additional rear handles for rigging support when adjusting

angles. The rear panel features two NL-4 waterproof 4-pin connectors. A perforated

steel grille with inner waterproof, dustproof acoustic mesh protects the drivers.

Features:

• 3-way, dual-driver line array loudspeaker with symmetrical low-frequency design

• Coaxial mid-high module for focused vocal imaging

• Neodymium LF, MF, and HF drivers reduce overall cabinet weight

• Continuous SPL up to 129dB with preset program

• 8 DSPpreset modes to suit different applications

• Space-saving transport design with user-friendly dolly boar
