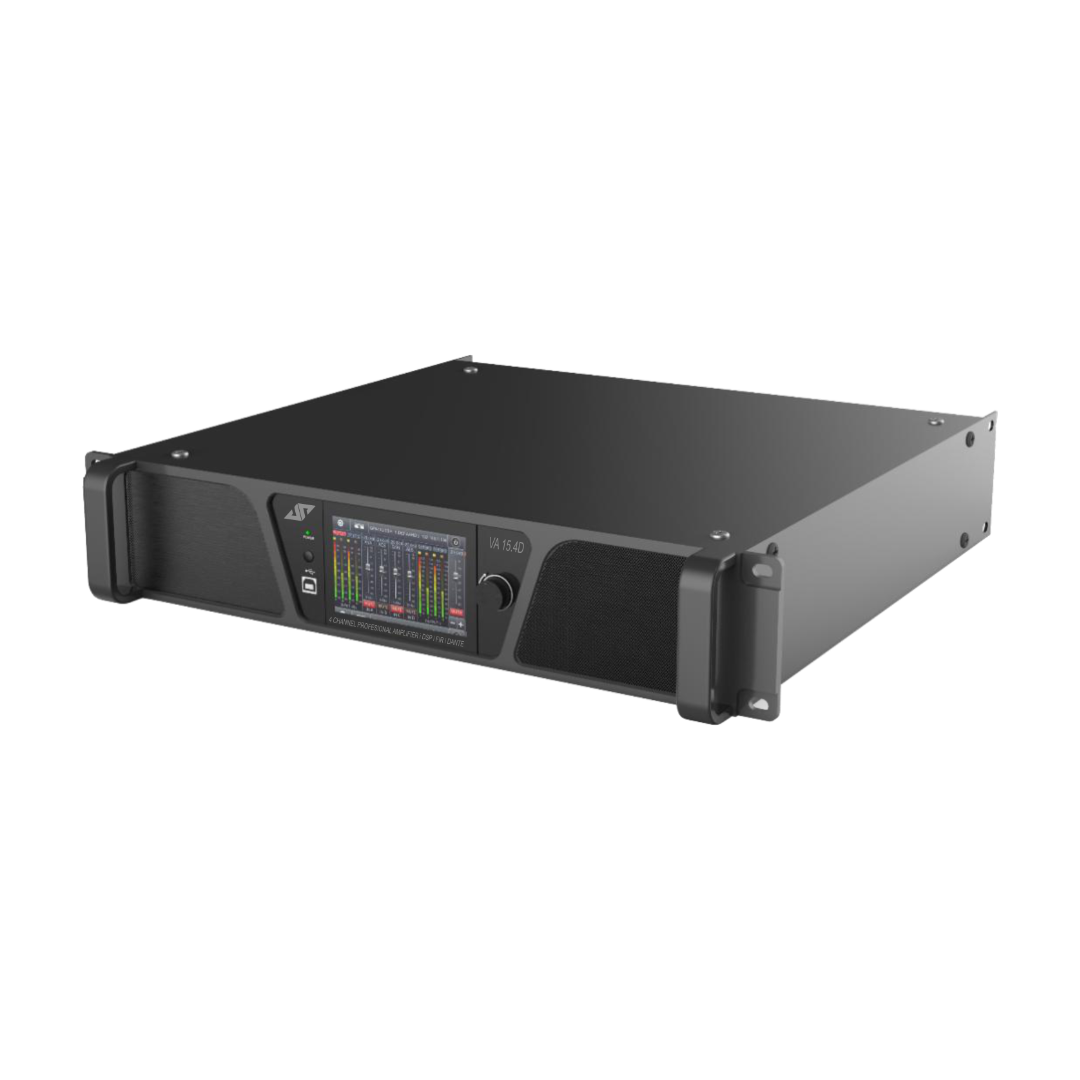

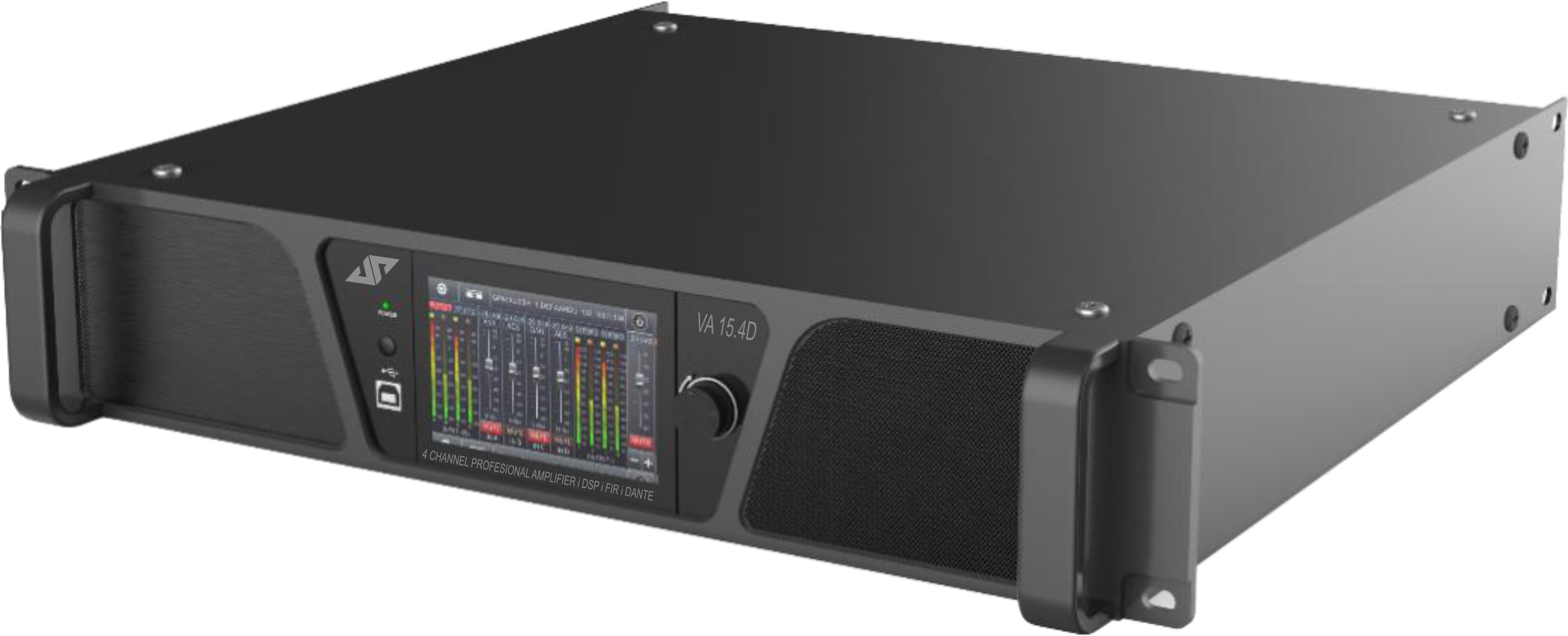

Value acoustics VA-15.4D
fiture:
Dante network audio and Dante-Analog backup function
Support AES3 digital audio input
Built-in DSP process 48Khz 24bit
FIR automatic linear magnitude and phase
Remote on\standby, call amplifier
Support 100V \70V\ 8Ω\4Ω
Free setting to limit power and voltage
4.3"colorful touch screen display
Monitoring temperature \ power \ voltage \ current \ resistance
deskripsi:
Amplifier 4 channels
Output power
2000watts/4Ω 1500watts/8Ω
bridge 2*3200watts
100V output power 100V(4*max2000W)
70V output power 70V(4*max1225W)
Max.output voltage 109V
Max.output current 22A
Min. load output 4Ω/channel
Input connector 4*XLR
Output connector 4*speakon,4*bindingpost
Max. inputlevel 20dBu/7.75V
Sensitivity
12dBu(31dB,x35.5)
6dBu(37dB,x70.58)
0dBu(43dB,x141.3)
SNR 100dB@12dBu,1kHz
Frequency response 20Hz to 20kHz(±0.5dB)@1W,8Ω
THD+N <1%@1W,8Ω
Sampling 48k/24bit
Dante 4input channels
Display 4.3’IPStouchdisplay
Protections
DSP limiter, high temperature,DC, high frequency,
short circuit, backEMF, peak current limiter, Back
EMF, Surge current limiter, startup delay, power
circuit breaker protection, power over voltage/under
voltage protection
PC control software VA
Power requirement VAC180~26450/60Hz
Device Net weight 12.35kg,485mm*460mm*90mm
Package Gross weight 16.4kg,590mm*585mm*165mm
