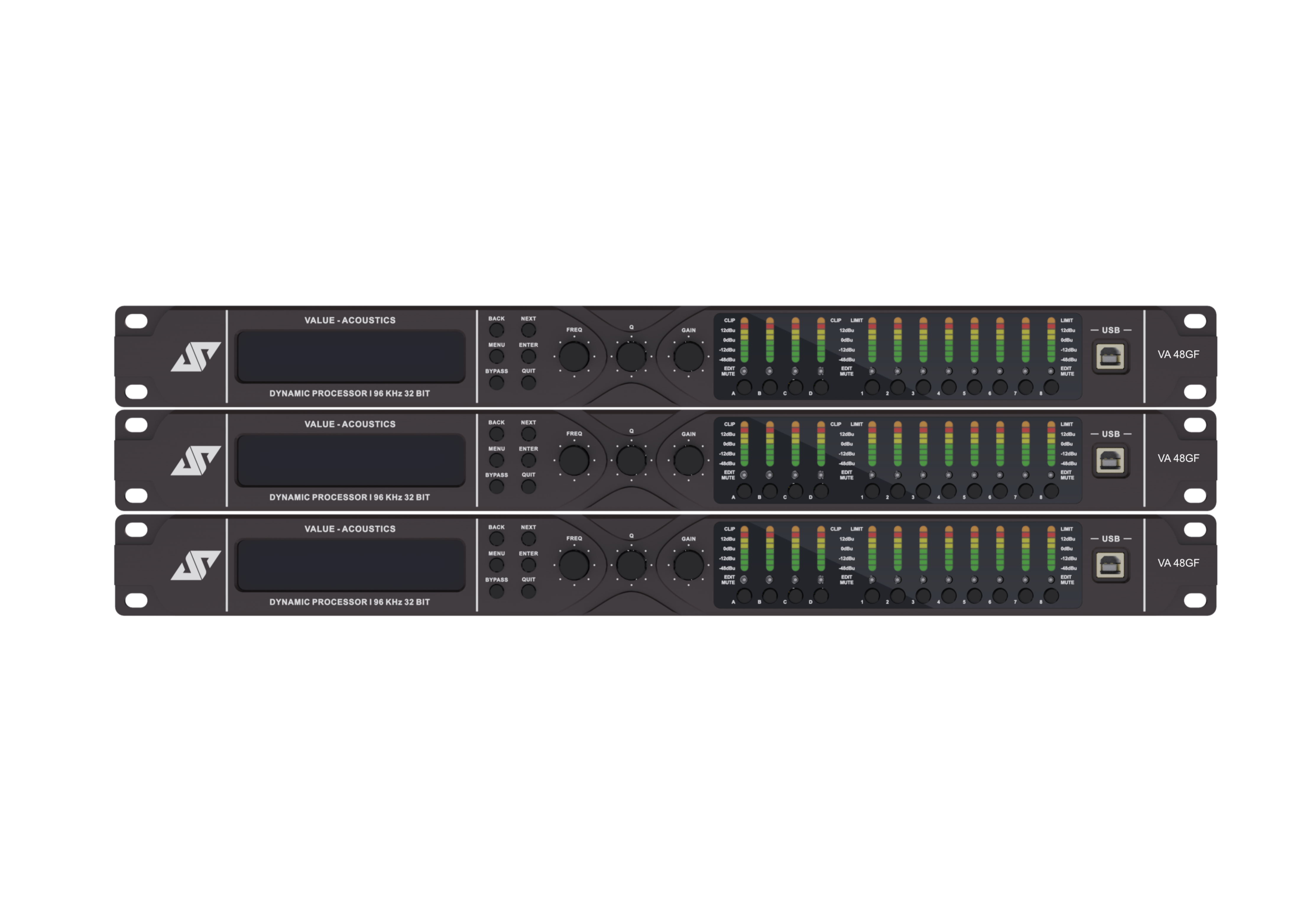

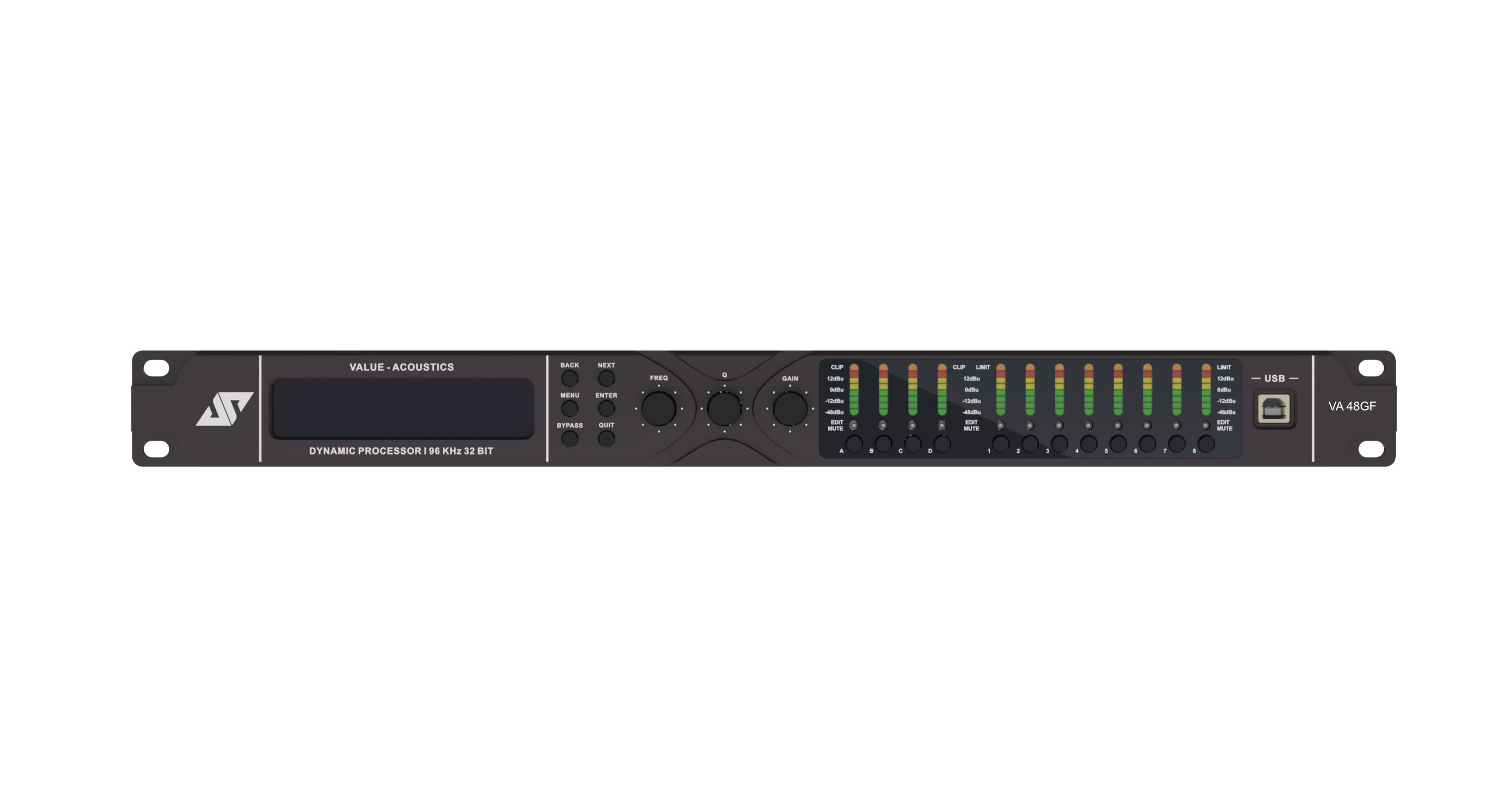

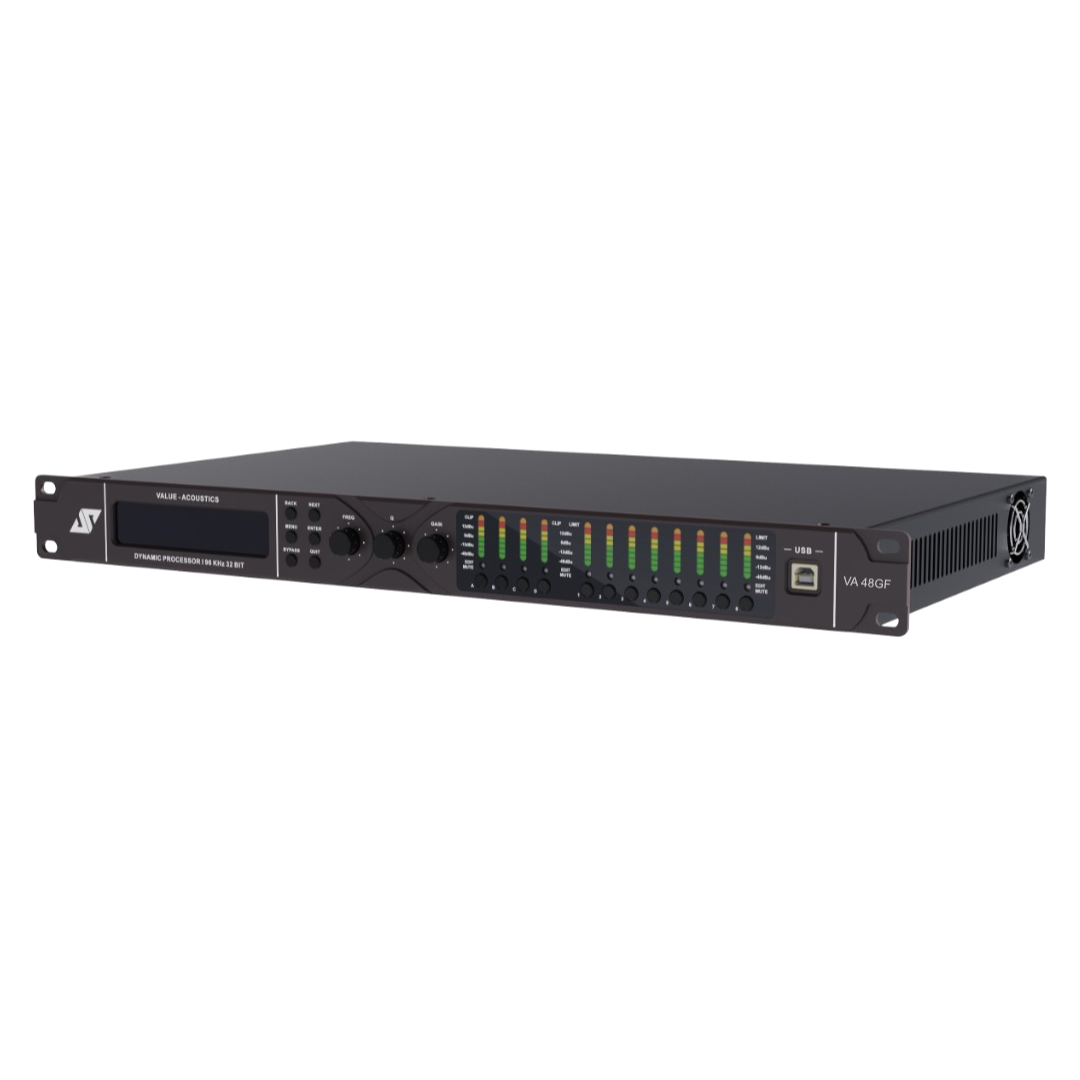

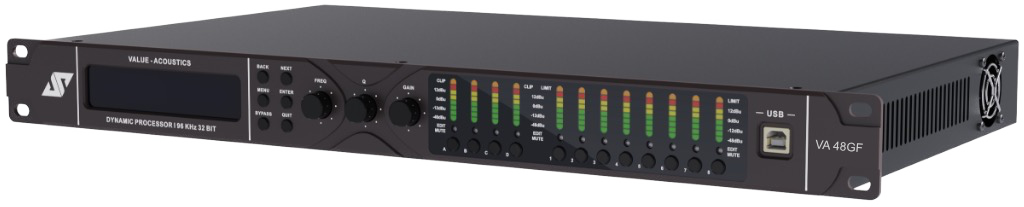

Value Acoustics VA-48GF
Features :
4 analog inputs and 8 analog outputs.
Each input support to switch AES3 signal.
4 channel sDante network audio optional.
High performance DSP process, 96khz
Input with 15 bands PEQ, output with 10 bands PEQ.
Support HPF and LPF with Butterworth\Bessel\Linkwitz-Riley. Support LSLV and
HSLV. Support ALL-PASS, Band pass, Band stop filters, Phase, Notch filter, 3 kinds
of High pass and Low pass.
Input with 3 bands Dynamic EQ.
Input with 4 x 512 Taps FIR linear phase setting.
Outputwith 8x 512 Taps FIR linear phase setting.
Standard FIR automatic linear phase function designer.
Support presets archiving and locking, hide setting parameters.
Control connections: USB or TCP/IP. Configured with RS232 central control
connection.
Nice GUI windows7/8/10/11 software .
Colourful LED indicator for input and output signal.
High analytical power, wide dyna
Deskripsi:
1.DSPProcess
Process: ADI SHARC 96KHz 32-bit
2.Analog Audio Inputs and Outputs
Input: 4channelsbalanced.
Input interface: XLR(Neutrik®)
Input impedance: 20KΩ
Maxinput level: 20dBu/Line
Output: 8channelsbalanced.Linelevel
Output interface: XLR(Neutrik®)
Output impedance: 50Ω
3.Audio Performance Specifications
Frequencyresponse: 20Hz-20kHz(+-0.5dB)/Line
THD+N:-93dB(@0dBu,1kHz,A-wt)/Line
Groundnoise: 20Hz-20kHz,A-wt,-93dBu
SNR: 113dB(@16dBu,1kHz,A-wt)/Line
4.Connect Ports and Indicators
USB: TypeA-B, freedriver
RS232: Serialportcommunication
TCP/IPinterface: RJ-45
Indicator light: Clip, level,edit,mute
5.Electrical and Physical
Supply: AC100V～240V50/60Hz
ProductsDimensions 483mmx215mmx44.5mm
PackagedDimensions 537mmx343mmx77mm
NetWeight 3.8kg
PackagedWeight 4.2kg
Operatingtemperature:-20℃～80℃
