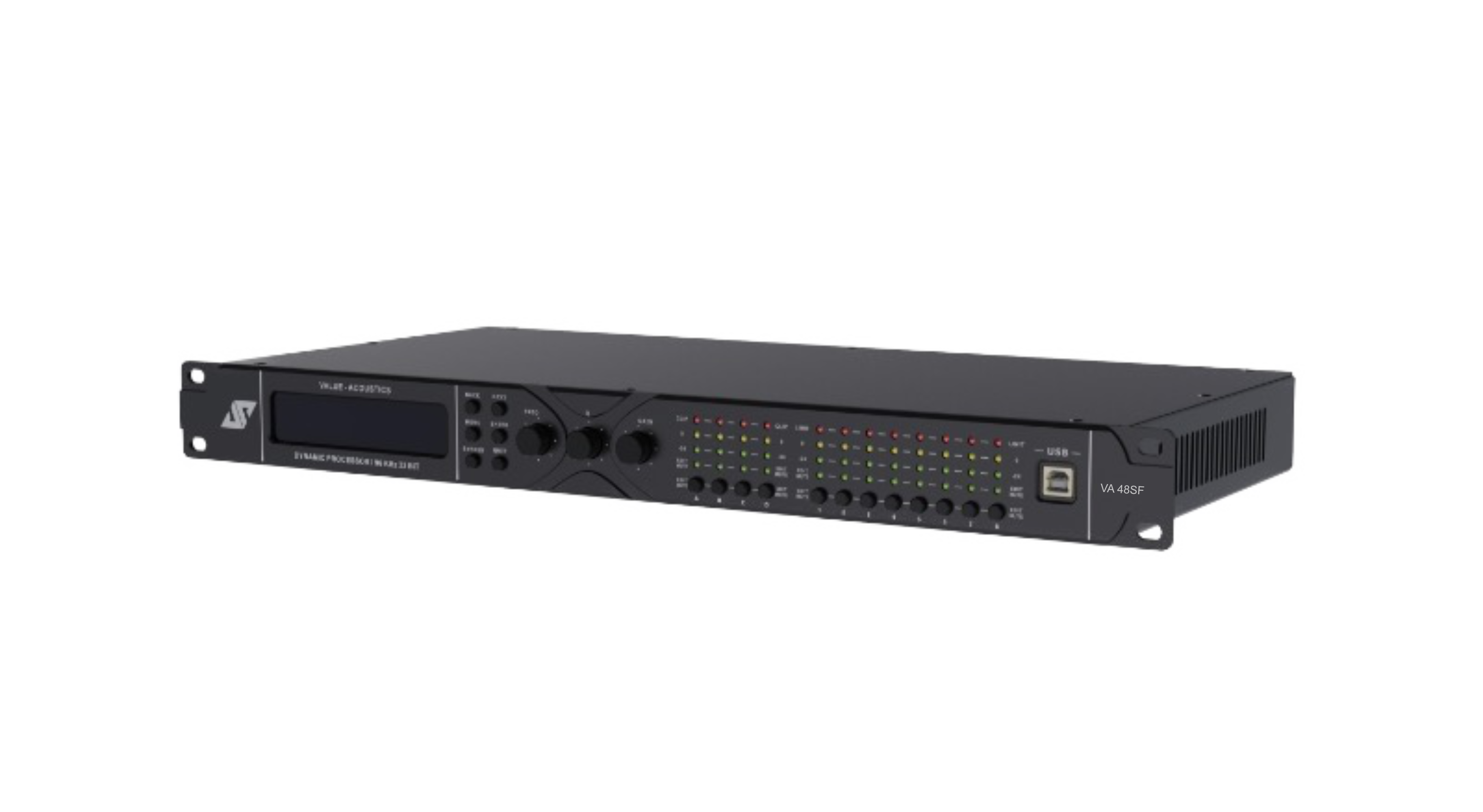

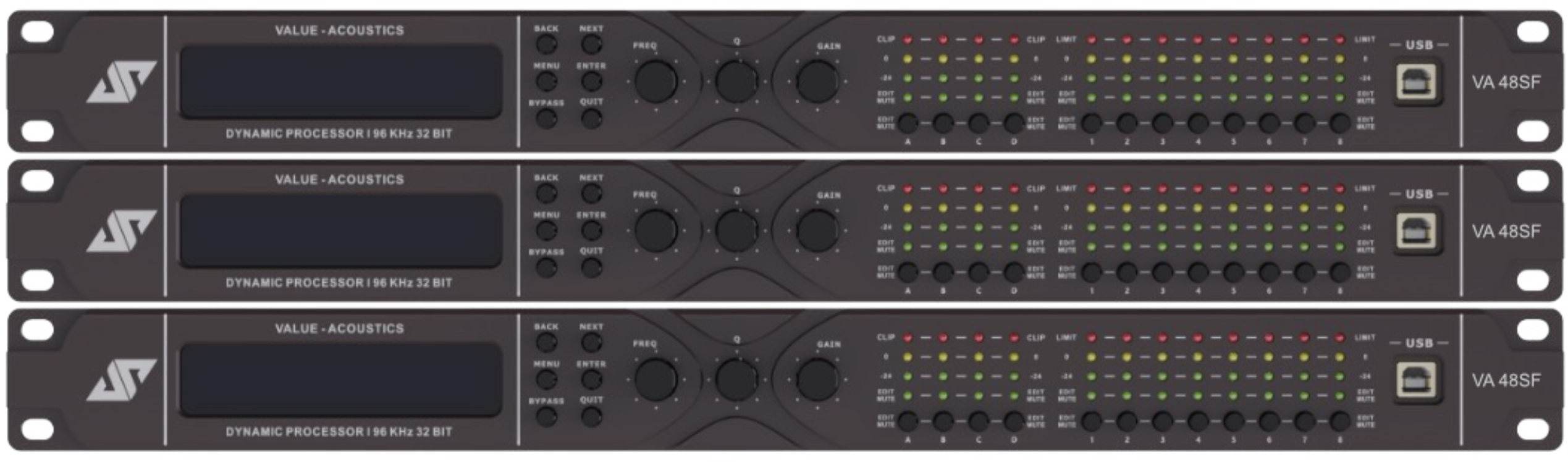

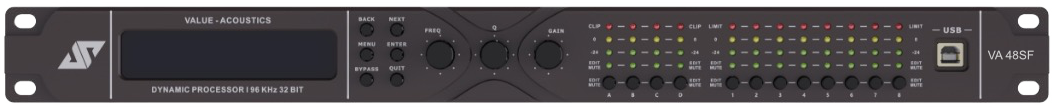

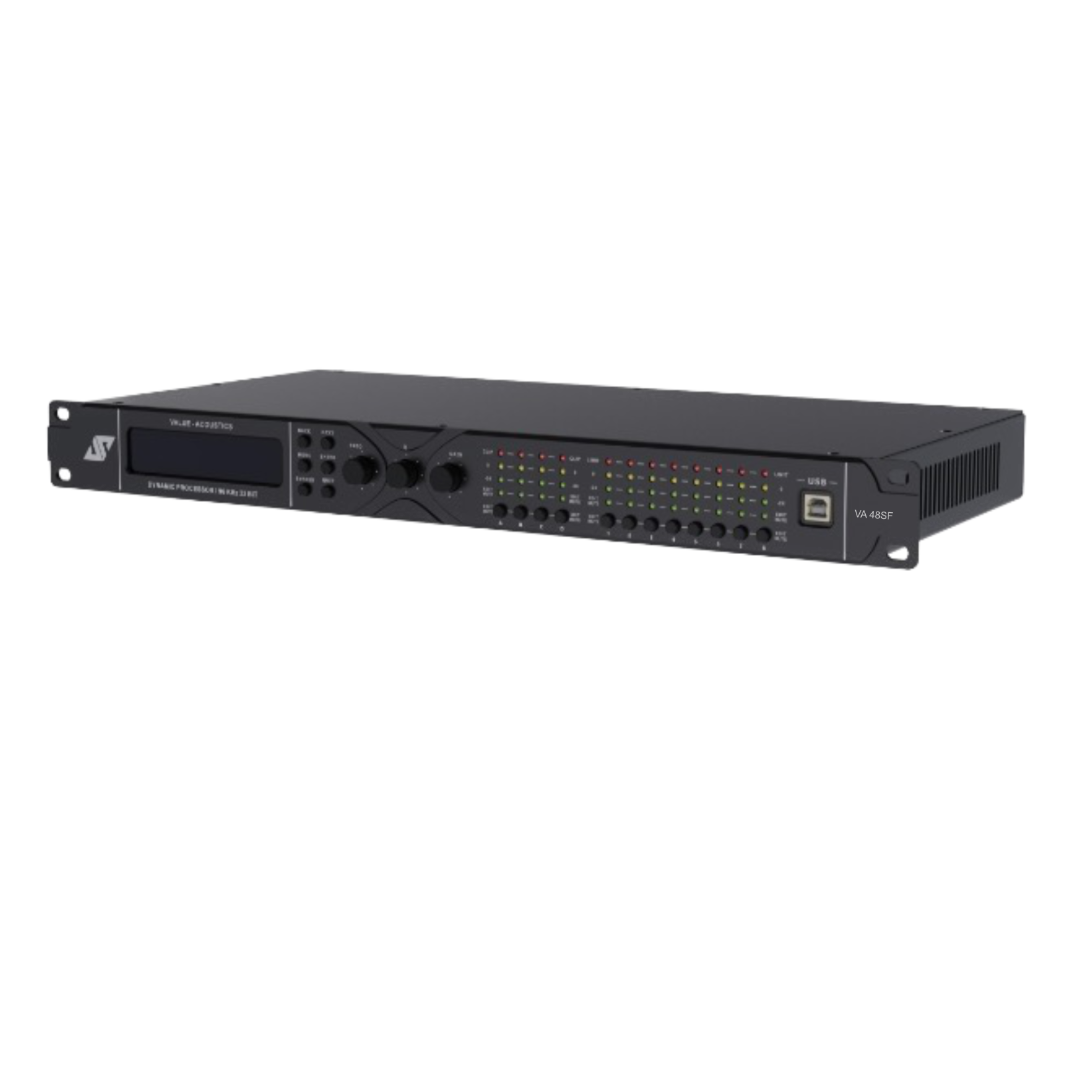

Value Acoustics VA-48SF
Features :
4 analog inputs and 8 analog outputs.
High performance DSP process, 96khz 32bit
Input with 15 bands PEQ, output with 10 bands PEQ.
Support HPF and LPF with Butterworth\Bessel\Linkwitz-Riley. Support LSLV and
HSLV,ALL-PASS filters.
Input with 3 bands Dynamic EQ.
Input with 4 x 512Taps FIR linear phase setting.
Output with 8 x 256 Taps FIR linear phase setting.
Support presets archiving and locking, hide setting parameters.
Control connections: USB or TCP/IP. Configured with RS232 central control
connection.
Nice GUI windows7/8/10/11 software
Deskripsi:
1.DSP Process
Process: ADI SHARC 96KHz 32bit
2.Analog Audio Inputs and Outputs
Input: 3or4channelsbalanced.
Input interface: XLR(Neutrik®)
Input impedance: 20KΩ
Maxinput level: 16dBu/Line
Output: 6or8channelsbalanced.Linelevel
Output interface: XLR(Neutrik®)
Output impedance: 150Ω
3.Audio Performance Specifications
Frequencyresponse: 20Hz-20kHz(+-0.5dB)/Line
THD+N:-90dB(@0dBu,1kHz,A-wt)/Line
Groundnoise: 20Hz-20kHz,A-wt,-93dBu
SNR: 108dB(@16dBu,1kHz,A-wt)/Line
4.Connect Ports and Indicators
USB: TypeA-B, freedriver
RS232: Serialportcommunication
TCP/IPinterface: RJ-45
Indicator light: Clip, level,edit,mute
5.Electrical and Physical
Supply: AC100V～240V50/60Hz
ProductsDimensions 483mmx215mmx44.5mm
PackagedDimensions 537mmx343mmx77mm
NetWeight 3.6kg
PackagedWeight 4.0kg
Operatingtemperature:-20℃～80℃
